Rocket stove mass heater

[MattF]

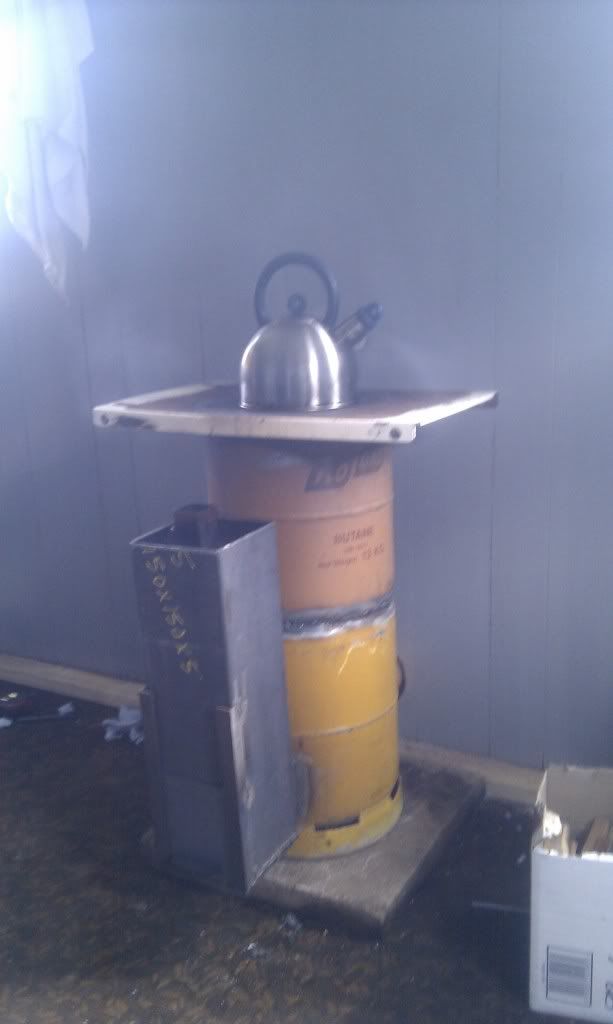

This is a photo of a heater / stove me and a friend have made for the shed at the shooting club it needs finishing off with the paint stripping off it then painting black works well boiled the kettle and warmed the shed up a treat
http://i667.photobucket.com/albums/vv37/sparkedmattf/IMAG0052.jpg

Matt



[gan_pi]

nice one. i'm trying to make one for the garage. I'm trying to do it from 'finds' but struggling to get something for the inner chimney. i want one of the commercial cooking oil tins, but since starting the project I've not seen them anywhere



[luckylee]

with out sounding like an idiot, where is the chimney for this? is it at the back and coming out at an angle, any more info on this please as in where are you feeding it and that.
take care.
lee.



[shaggystu]

with out sounding like an idiot, where is the chimney for this? is it at the back and coming out at an angle, any more info on this please as in where are you feeding it and that...

well i certainly don't think you sound like an idiot mate, i'm as baffled as you are!

really interesting looking stove, any more info - plans etc. - would be great

stuart



[MattF]

Hi sorry about delay in replying I will take some more pictures its flue is at the bottom on the back and it fed from the front down the box section and do a rough set of plans for it.

Stuart if you want to see it in the flesh it only just the other side of Ashover

Atb Matt



[shaggystu]

....Stuart if you want to see it in the flesh it only just the other side of Ashover.....

which shooting club would that be then? i don't know of any round here

stuart



[MattF]

The one at Hollins Green near Clay Cross its not on the map yet as we are a small club and shoot HFT

Matt



[luckylee]

well i certainly don't think you sound like an idiot mate, i'm as baffled as you are!

really interesting looking stove, any more info - plans etc. - would be great

stuart

glad i was not on me own bud, felt like a right numpty posting that, but the curiosity got the better of me.



[shaggystu]

The one at Hollins Green near Clay Cross its not on the map yet as we are a small club and shoot HFT

Matt

you're right, just the other side of ashover, i still had to get the A to Z out though, never heard of hollins green before

stuart



[MattF]

Here is a link to the first one my friend made its on UTube
http://www.youtube.com/watch?v=UBWS...UCGXQYbcTJ33YhsrOogOaGyaxYVgXKTYJGd3g5ultQFPQ

http://www.youtube.com/watch?v=PtnuI4p_sUE&feature=related

Here is another link http://www.iwilltry.org/b/build-a-rocket-stove-for-home-heating/

http://www.richsoil.com/rocket-stove-mass-heater.jsp

Will get dimensions tomorrow

Matt
