First for the year

[2Tim215]

Hi all
Hope you all had a blessed new years.

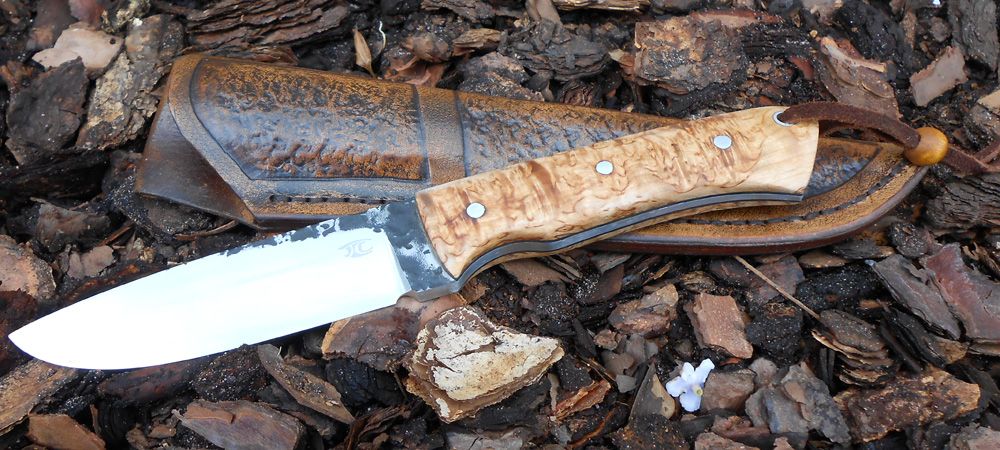

N690 SS with birds eye maple.
5mm stock with tapered tang down to 2.5mm.
OAL = 230mm
Blade = 114mm x 30mm x 5mm







Comments and crit welcome
Tim



[Klenchblaize]

Looking very nice to my eye and the sheaf.

Perhaps use 6 small pins for the scales rather than 3 if not using bolts?

Is it sold or for sale?

Cheers

K



[2Tim215]

Thanks. I was going to do the pins with washers and domed but it didn't suit the knife so went this way instead. And yes it is up for sale.



[Zingmo]

I like the finish on that sheath. What did you use to get that texture?

Z



[2Tim215]

I like the finish on that sheath. What did you use to get that texture?

Z

Ah!! Secrets of the trade I used the same piece of steel that is used to do the blade Found a really old piece of rusted plate. Cleaned off all the rust with a wire brush. Cut it into sections. Welded it up onto bar stock for my press and used that to texture the blade (that was a 4 hour process all by itself). I then took a bolt and heated it up to yellow with the cutting torch and using a piece of thick wall tubing smacked it onto the rusty texture jig I made and there we have a new stamp for leather work. You have to round of the stamp edges or it leaves ugly marks.



[Zingmo]

Ah. A bespoke tool for a bespoke finish. Definitely well worth the effort.

Z
